CO-10 KIT, CO-10 Electronic Pulse Counter with Mounting Housing
4.4 (28 items)
Limited Time SaleUS$37.80 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211163261 | Release Date | 2026/04/04 | List Price | US$25.20 | Model Number | 211163261 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- CO-10 with mounting housing to remotely display water meter with pulse output like DAE MJ series (MJ-50 1/2", MJ-75 3/4", MJ-100 1", MJ-150 1-1/2", MJ-200 2" water meters) or DAE AS Series (AS130U-50P 1/2", AS200U-75P 3/4", AS250U-100P 1", AS320U-125P 1-1/4", AS320U-150P 1-1/2" water meters), WP Series (2" - 20"), V Series and VM Series. If you would like to connect DAE CO-10 to your own water meters or devices, please make sure they have a dry contact (no voltage, like reed switch).

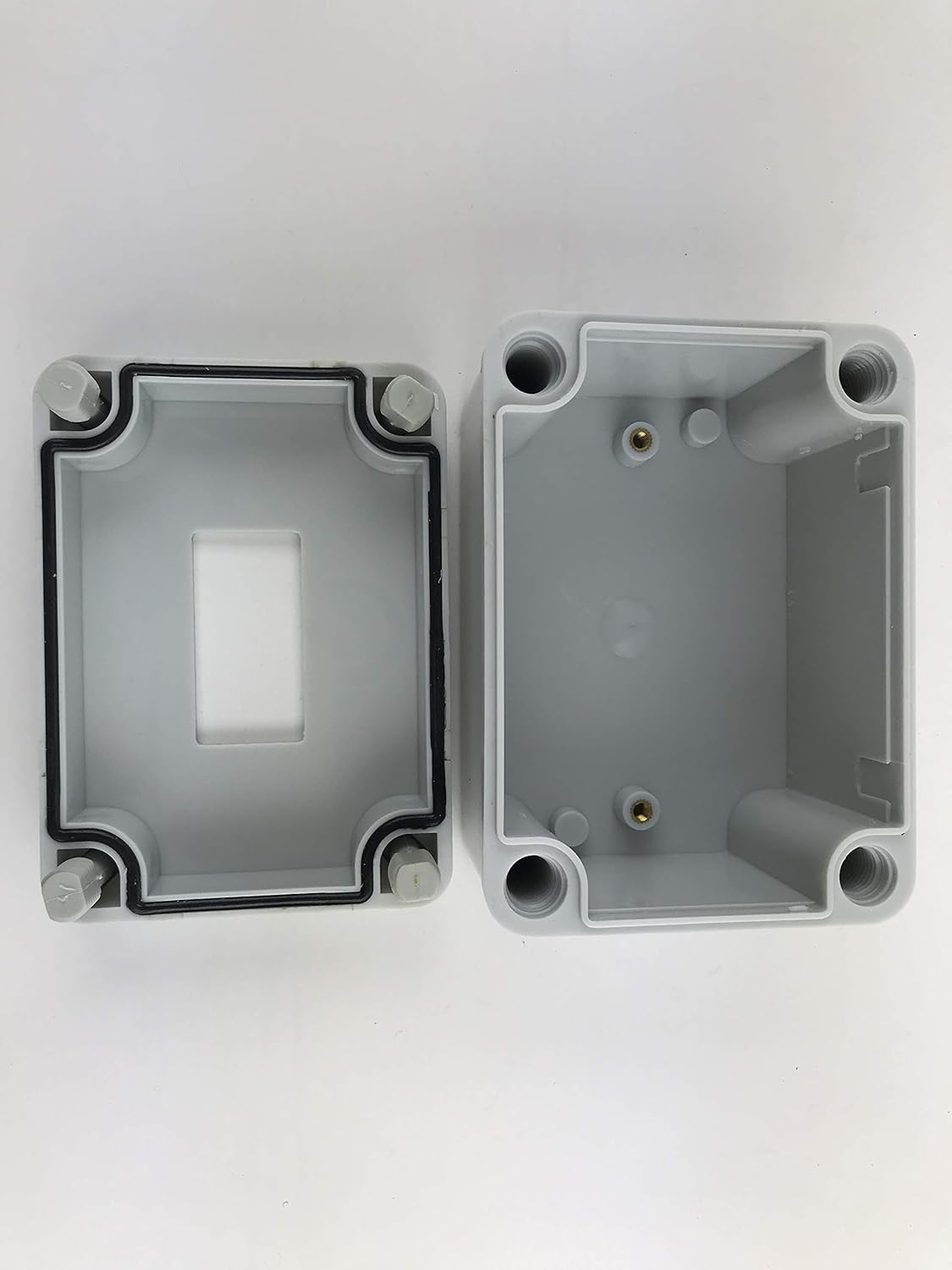

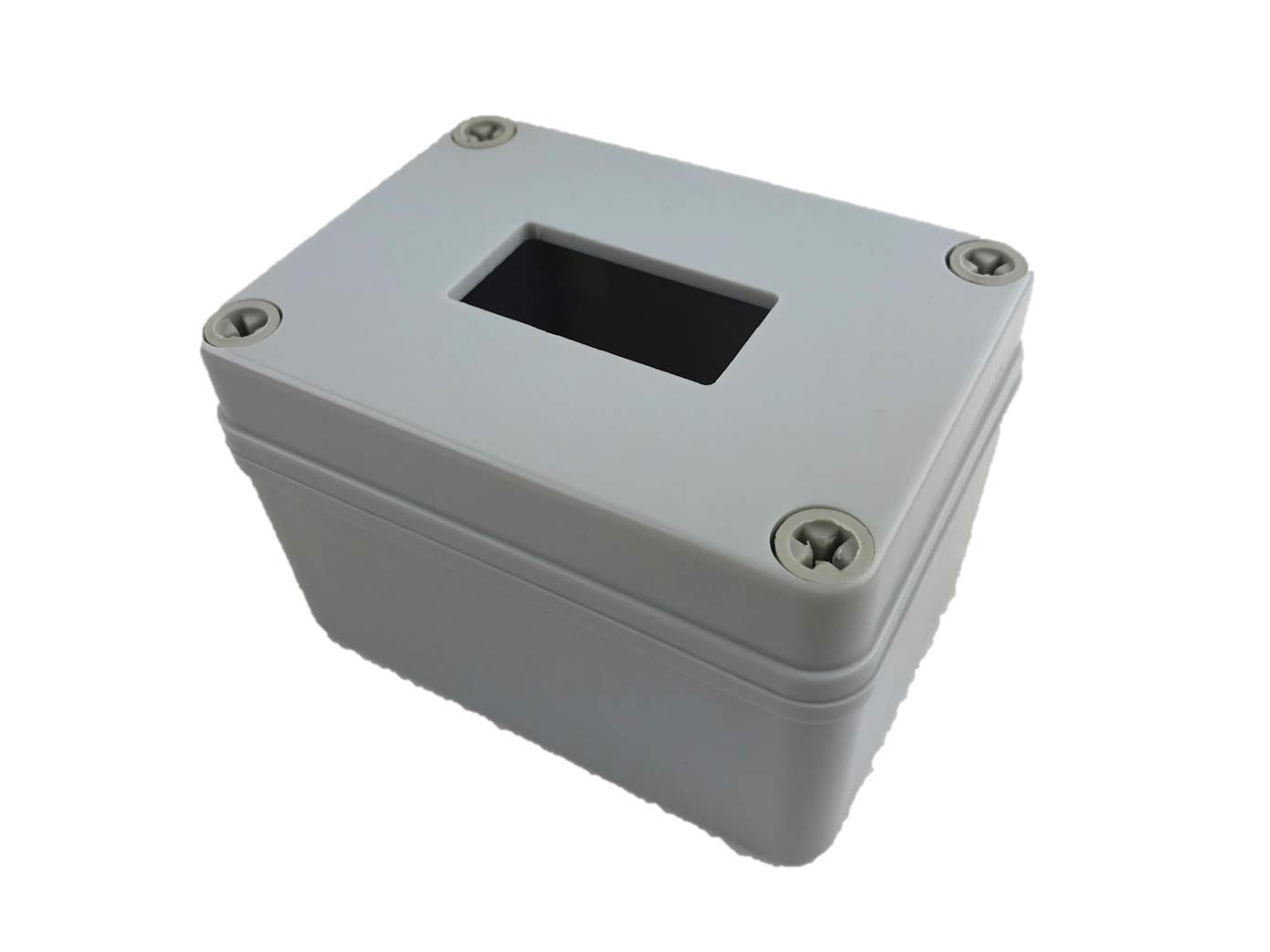

- Slide up and push the button (5th picture) to reset the counter to 0. Safely mount CO-10 KIT to the wall for ease of reading. Indoor use only, Lockable DAE B1722 watertight enclosure is available for outdoor use, which can also prevent the tenants from resetting the counter. Please contact us if you would like to order CO-10 KIT which is non-resettable.
- For remote reading with CO-10, 1 Non-Return-Valve (like NRVMJ-75 for MJ-75, to be installed at outlet of meter) is required for each Water Meter (1 gallon/pulse), or reading on CO-10 will be more than actual reading on meter due to back flow. With UL2464-100 (shielded, twisted pair cable), it can extend the connection of the water meter to the CO-10 up to 328 feet (100 meters).
- When water flows back, meter keeps generating pulse like water is flowing forward. Reading on CO-10 is based on input of pulse. Therefore, without Non-Return-Valve, reading on CO-10 will be more than actual reading on meter due to back flow. For example, when 10 gallons of water flow through MJ-75 meter and 2 gallons flow back, reading on meter is 8 gallons. But reading on CO-10 will be 12 gallons.
- For web based solution, please choose 1 CC2030KIT+AMR130AN KIT to read 1 water meter with cell phone, PC and generate billing report. DAE Controls LLC is an Minority Business. Please feel free to get the NMSDC Minority Supplier Certificate from DAE Controls Website.
| Manufacturer | DAE |
|---|---|
| Item model number | CO-10 KIT |
| Product Dimensions | 3 x 4.25 x 2.75 inches |
| Is Discontinued By Manufacturer | No |
