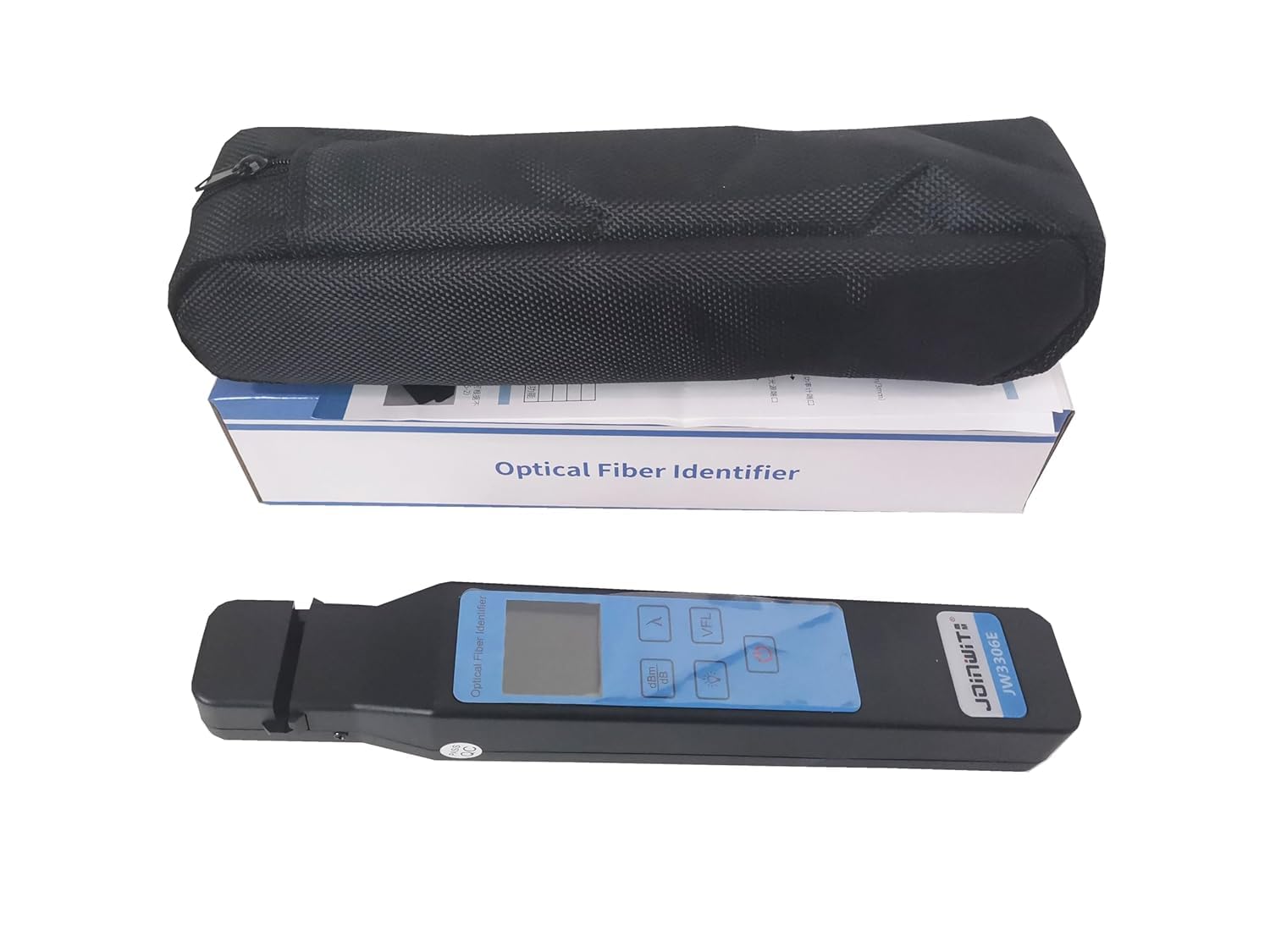

Handheld Optical Fiber Identifier Live/Dark Fiber Identification Tool with Wavelength Range 800 to 1700nm Visual Fault Locator Module Fault Location Function

Features: TFT color screen Indicate the signal directions and power in fiber Indicate the signal presence or absence(Live or dark fiber) Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning Displays the relative core power Don't need to replace adaptor Lower power indication Build in VFL function Build in OPM function Speifications: Fibre Optic Identifier Module: Recognition wavelength range (nm): 800 to 1700 Probe Type: InGaAs Adapter type (mm): 250um, 900um, 2mm, 3mm Modulation Frequency (Hz): CW, 270, 1K, 2K Fibre optic signal display detection range (dBm): -50 to 13 Signal direction detection range (dBm, typical): -35 to 13 Signal frequency indication (Hz): 270, 1K, 2K Signal frequency detection range (dBm, typical): -30 to 13 General Power Meter Module: Test wavelength (nm): 850, 1300, 1310, 1490, 1550, 1625 Power Measurement Range (dBm): -50 To 26 Unit: dBm, dB, xW Resolution (dB): 0.01 Uncertainty (dB): ≤0.5 Test Interface: Φ2.5mm universal interface Red light visual fault location module Wavelength (nm): 650±10 Output power (mW): ≥10 Test Interface: Φ2.5mm universal interface Other: Display screen: Colour LCD Power supply: 2*1.5V AA battery Operating temperature (℃): -20～+60 Storage Temperature(℃): -30～+70 Dimensions (mm, without switch): 220*38*28

• Identified Wavelength Range: 800-1700 nm
• Build in VFL function; Build in OPM function
• Using the macro bending technology on line for nondestructive testing, it can measure the signal direction and power and avoid misoperation resulting in interrupted lines.
• Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function.
